Firmware

MMI 3G Bnav 5F

Updates
  • 8R0906961G - Update 3G Basic EU
  • 8R0906961P -> 8R0906961AA - Update 3G Basic
  • 8R0906961Q - Update 3G Basic/High EU
  • 8R0906961AA - Update 3G Basic
  • 8R0906961AG -> 8R0906961AH - Update 3G Basic EU (support for 2013 maps)
  • 8R0906961CG - K_0256 EU (A4/A5/Q5/A6/Q7) SVM:3GBEU256
  • 8R0906961DE - K_0250 US (A6/Q7) SVM:3GBUS250
  • 8R0906961DP - K_0260 EU (A4/A5/Q5/A6/Q7) SVM:3GBEU260
  • 4G09119884E - SDS Language CD

MMI 3G Hnav 5F

Updates
  • 8R0906961 -> 8R0906961C - Update 3G High EU
  • 8R0906961A - Update 3G ???
  • 8R0906961B -> 8R0906961D - Update 3G High EU
  • 8R0906961C -> 8R0906961J - Update 3G High EU
  • 8R0906961D - Update 3G High EU
  • 8R0906961E - Update 3G ???
  • 8R0906961F - Update 3G High EU
  • 8R0906961H - Update 3G High AUSTRALIA
  • 8R0906961J - Update 3G High EU
  • 8R0906961K - Update 3G ???
  • 8R0906961L - Update 3G ???
  • 8R0906961N -> 8R0906961T - Update 3G High EU
  • 8R0906961J - K22
  • 8R0906961Q - Update 3G Basic/High EU
  • 8R0906961R - K0114 NAR (A6 (4F),Q7,Q5,A4,A5) SW0116 SVM:3GHUS114
  • 8R0906961S - Update 3G High US
  • 8R0906961T - K31 EU/RdW (A6 (4F),Q7,A8(4E),Q5,A4,A5)SW0143 SVM:3GHEU031
  • 8R0906961AB - Update 3G High EU/US
  • 8R0906961AC - Update 3G High CHINA
  • 8R0906961AD - Update 3G High JAPAN
  • 8R0906961AE - Update 3G High KOREA
  • 8R0906961AF - K54
  • 8R0906961AJ - K72 EU (A6 (4F),Q7,Q5,A4,A5) SVM:3GHEU072
  • 8R0906961AS - K206 EU/RdW (A6 (4F),Q7,A8(4E),Q5,A4,A5) SW0174 SVM:3GHEU206 (before K206 update to K31 first!)
  • 8R0906961AL - Update 3G High EU
  • 8R0906961BB - K0574 KR (A6 (4F),Q7,A8(4E),Q5,A4,A5) SW0574 SVM:3GHKR574
  • 8R0906961BD - K206 EU MMI 3G Basic (A6(4F),Q7,Q5,A4,A5)SW0175 SVM:3GBEU206
  • 8R0906961BN - K_0377 CN (A6 (4F),Q7,A8(4E),Q5,A4,A5) SW0100 SVM:3GHCN377
  • 8R0906961BP - K_0275 JP (A6 (4F),Q7,A8(4E),Q5,A4,A5) SW0272 SVM:3GHJP275
  • 8R0906961CC - K_0253 EU (A4,A5,Q5,A6,A8,Q7) SVM:3GHEU253 (before K_0253 update to K206 first!)
  • 8R0906961CF - ändert sich in 8R0906961CP
  • 8R0906961CP - K_0133 US (A4,A5,Q5,A6,Q7) SVM:3GHUS133
  • 8R0906961DF - K_0257 EU (A4,A5,Q5,A6,Q7) SVM:3GHEU257
  • 8R0906961DQ - K_0257_6 EU (A4,A5,Q5,A6,Q7) SVM:3GHEU257
  • 8R0906961AB - Display Update SVM:3GHDISPLAY (contains K206, K0574, K_0377 and K_0275)
  • 8R0906961AL - DAB+ Update SVM:3GRU0098 (in K206, K0574, K_0377 und K_0275 schon enthalten)

MMI 3GP/MMI 3G+ Hnav 5F

Updates
  • 8R0906961M - K_066 EU (A6/A8/A7) SVM:3GPEU066
  • 8R0906961AK - DAB+ Update (in den 517er/518er enthalten)
  • 8R0906961AM - K_485 EU (A6/A8/A7) SVM:3GPEUK485
  • 8R0906961AN - K_364 CN (A6/A8/A7)
  • 8R0906961AP - K_264 JP (A6/A8/A7)
  • 8R0906961BK - K_0517 EU (A4/A5/Q5 hybrid/Q7) SW0482 SVM:3GPEU517
  • 8R0906961BL - K_0517 EU (A1) SW0483 SVM:3GPEU517A1
  • 8R0906961BM - K_0518 EU (Q3/A6/A8/A7) SW0484 SVM:3GPEU518
  • 8R0906961BT - K_0612 EU (Q3/A6/A8/A7) SVM:3GPEU612
  • 8R0906961CA - K_0612 EU (A4,A5,Q5,Q7) SVM:3GPEU612AU3G
  • 8R0906961CB - K_0612 EU (A1) SVM:3GPEU612A1
  • 8R0906961CD - K_0614 EU (Q3/A6/A8/A7) SVM:3GPEU614
  • 8R0906961CE - K_0614 EU (A4/A5/Q5/Q7) SVM:3GPEU614AU3G
  • 8R0906961CH - K_0284 JP (A6/A7/A8/Q3) SVM:3GPJP284
  • 8R0906961CJ - K_0284 JP (A4/A5/Q5/Q7) SVM:3GPJP283AU3G
  • 8R0906961CK - K_0284 JP (A1) SVM:3GPJP284A1
  • 8R0906961CL - K_0715 US (A6/A7/A8/Q3) SVM:3GPUS715
  • 8R0906961CM - K_0715 US (A4/A5/Q5/Q7) SVM:3GPUS715AU3G
  • 8R0906961CN - K_0715 US (A1) SVM:3GPUS715A1
  • 8R0906961CQ - K_0584 KR (A4/A5/Q5/Q7) SVM:3GPKR584AU3G
  • 8R0906961CR - K_0584 KR (A6/A7/A8/Q3) SVM:3GPKR584
  • 8R0906961CS - K_0384 TW (A6/A7/A8/Q3) SVM:3GPTW384
  • 8R0906961CT - K_0384 TW (A4/A5/Q5/Q7) SVM:3GPTW384AU3G
  • 8R0906961DA - K_0384 KR (A1) SVM:3GPTW384A1
  • 8R0906961DB - K_0384 CN (A1) SVM:3GPCN384A1
  • 8R0906961DD - K_0384 CN (A6/A7/A8/Q3) SVM:3GPCN384
  • 8R0906961DC - K_0384 CN (A4/A5/Q5/Q7) SVM:3GPCN384AU3G
  • 8R0906961DG - K_0770 EU (Q3/A6/A8/A7) SVM:3GPEU770
  • 8R0906961DH - K_0767 EU (A4/A5/Q5/Q7)
  • 8R0906961DJ - K_0770 EU (A1) SVM:3GPEU770
  • 8R0906961?? - K_0783 EU (Q3/A6/A8/A7)
  • 8R0906961DL - K_0814 US (A1)
  • 8R0906961DM - K_0814 US (Q3/A6/A8/A7)
  • 8R0906961DN - K_0814 US (A4/A5/Q5/Q7)
  • 8R0906961DR - K_0814 EU (Q3/A6/A8/A7)
  • 8R0906961DS - K_0814 EU (A4/A5/Q5/Q7)
  • 8R0906961DT - K_0814 EU (A1)
  • 8R0906961EA - K_0900 EU (Q3/A6/A8/A7)
  • 8R0906961EB - K_0900 EU (A4/A5/Q5/Q7)
  • 8R0906961EC - K_0900 EU (A1)
  • 8R0906961FB - K_0942 EU (Q3/A6/A8/A7)
  • 8R0906961FC - K_0942 EU (A4/A5/Q5/Q7)
  • 8R0906961FD - K_0942 EU (A1)
  • 8R0906961ES - K_0942 US (Q3/A6/A8/A7)
  • 8R0906961ET - K_0942 US (A4/A5/Q5/Q7)
  • 8R0906961FA - K_0942 US (A1)

Navigation MAP Data

MMI 3G Bnav 2009 — 2017

5.8.4 - 20098R0060884E - Activation
4G0 919 884 D - DVD Map data ECE 5.10.5 - 20098R0060884J - Activation
4G0 919 884 F - DVD Map data ECE 5.11.8 - 20108R0060884R - Activation
4G0 919 884 G - DVD Map data ECE 5.12.4 - 20118R0060884N - Activation
4G0 919 884 J - DVD Map data ECE 5.13.8 - 20128R0060884AH - Activation
4G0 919 884 K - DVD Map data ECE 5.15.3 - 20138R0060884AR - Activation
4G0 919 884 L - DVD Map data ECE 5.17.2 - 20148R0060884BK - Activation
4G0 919 884 N - DVD Map data ECE 5.20.4 - 20158R0060884CH - Activation
4G0 919 884 Q - DVD Map data ECE 5.21.2 - 2015/20168R0060884CR - Activation
4G0 919 884 R - DVD Map data ECE 5.22.3 - 20168R0060884DF - Activation
4G0 919 884 S - DVD Map data ECE 5.24.2 - 20178R0060884ED - Activation
4G0 919 884 AA - DVD Map data ECE 5.26.2 - 20188R0060884FC - Activation
4G0 919 884 AC - DVD Map data ECE 5.27.2 - 2018-20198R0060884FK - Activation
4G0 919 884 - DVD Map data ECE

MMI 3G Hnav & 3GP Hnav 2008 — 2017

5.5.5 - 20088R0 060 884 - Map data ECE With Q5 5.6.8 - 20098R0060884C - Activation
8R0 051 884 C - Map data ECE 5.8.5 - ?8R0060884E - Activation
8R0 051 884 E - Map data ECE 5.10.5 - ?8R0060884J - Activation
8R0 051 884 J - Map data ECE 5.11.7 - 20108R0060884R - Activation
8R0 051 884 R - Map data ECE 5.12.5 - 20118R0060884N - Activation
8R0 051 884 N - Map data ECE 5.13.8 - 20128R0060884AH - Activation
8R0 051 884 AH - Map data ECE 6.15.5 - 20138R0060884AR - Activation
8R0 051 884 AR - Map data ECE 6.17.3 - 20148R0060884BK - Activation
8R0051884BK - Map data ECE 6.19.3 - 2014-20158R0060884BT - Activation
8R0 051 884 BT - Map data ECE 6.20.4 - 20158R0060884CH - Activation
8R0 051 884 CH - Map data ECE 6.21.2 - 2015-20168R0060884CR - Activation
8R0 051 884 CR - Map data ECE 6.22.4 - 20168R0060884DF - Activation
8R0 051 884 DF - Map data ECE 6.24.2 - 20178R0060884ED - Activation
8R0 051 884 ED - Map data ECE 6.26.1 - 20188R0060884FC - Activation
8R0 051 884 FC - Map data ECE 6.27.2 - 2018-20198R0060884FK - Activation
8R0 051 884 FK - Map data ECE

Tweaks

Invalid Data Set

  • Address 5F: Information Electr. (J794)
  • 03175 - Invalid Data Set Freeze Frame:
    Fault Status: 01100000
    Fault Priority: 2
    Fault Frequency: 1
    Reset counter: 121
    Mileage: xxxxx km
    Time Indication: 0
    Date: 2015.10.04
    Time: 20:00:56

    Freeze Frame:
    Voltage: 12.30 V
  • In Progress
  • ...

Please Check Software Version Management

  • Address 5F: Information Electr. (J794)
  • 03276 - Please Check Software Version Management
    000 - -
    Freeze Frame:
    Fault Status: 01100000
    Fault Priority: 6
    Fault Frequency: 1
    Reset counter: 4
    Mileage: xxxxx km
    Time Indication: 0
    Date: 2015.10.04
    Time: 20:00:56

    Freeze Frame:
    Voltage: 14.40 V

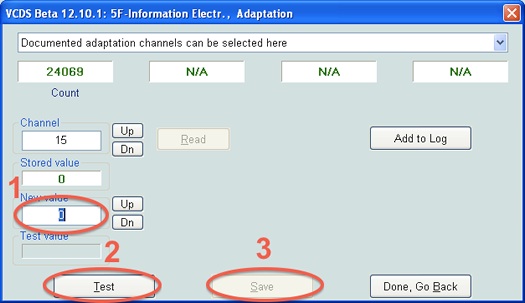

  • Howto;
Copy the value in the tool below, copy the 'New value' in 'New value'
'Test', 'Save' & 'Done, go back' VCDS Check Software management

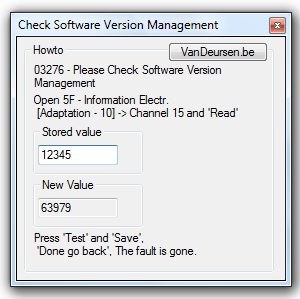

  • Check Software management Tool;
VCDS Check Software management
